ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws

Name: ISO4028 Class 129 Alloy Steel Hexagon Socket Drive HalfDog Point Headless Screws
Brand: Runtai
Price: 1 USD

Quality ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws wholesale

Brand Name : Runtai

Model Number : Set Screws

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A

Supply Ability : 5 Ton/ days

Delivery Time : 15-20 working days

Packaging Details : PP bag+Carton box+ Wooden Pallet

Size : M1-M30 for choose

Material : Steel, Stainless Steel, Brass, Aluminum Alloy

Grade : 4.8 8.8 10.9 12.9 for choose

Surface treatment : zinc plated, nickel plated, black phosphates for choose

Standard : DIN ISO JIS ANSI

Products Name : ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws

Contact Now

ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws

Products Description

Also known as half dog-point set screws, these set screws have a protruding tip that locks within a mating hole or slot to keep parts aligned.Length listed is the overall length.

Products Specification

Material	Alloy Steel
Thread Size	M10
Thread Pitch	1.5 mm
Length	50 mm
Tip, mm
Diameter	7
Diameter Tolerance	-0.36 to 0
Length	5.3
Length Tolerance	-0.3 to 0
Drive Size	5
Hardness	Rockwell C45
Specifications Met	DIN 915, ISO 4028
Thread Type	Metric
Thread Spacing	Coarse
Thread Fit	Class 6g
Thread Direction	Right Hand
Drive Style	Hex
Tip Type	Extended
Head Type	Headless
System of Measurement	Metric
RoHS	Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws

Product Tags:

small set screws

hex set screw

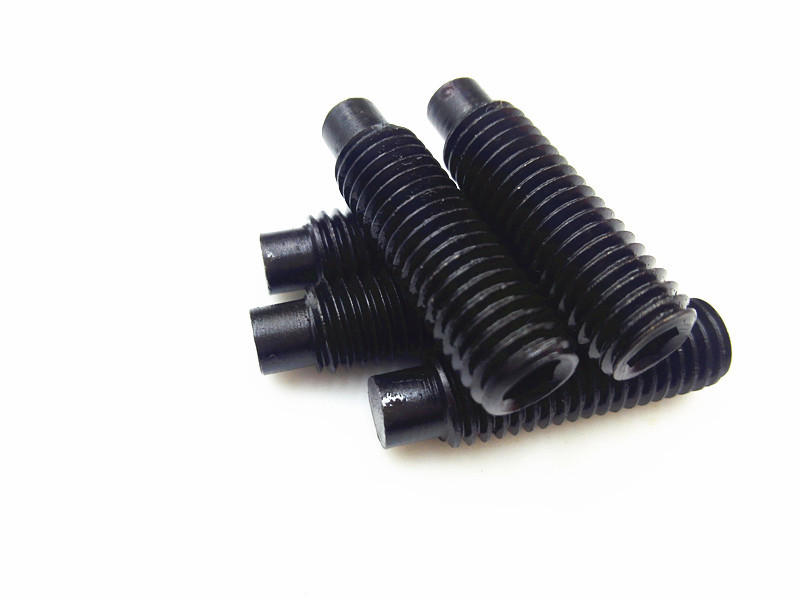

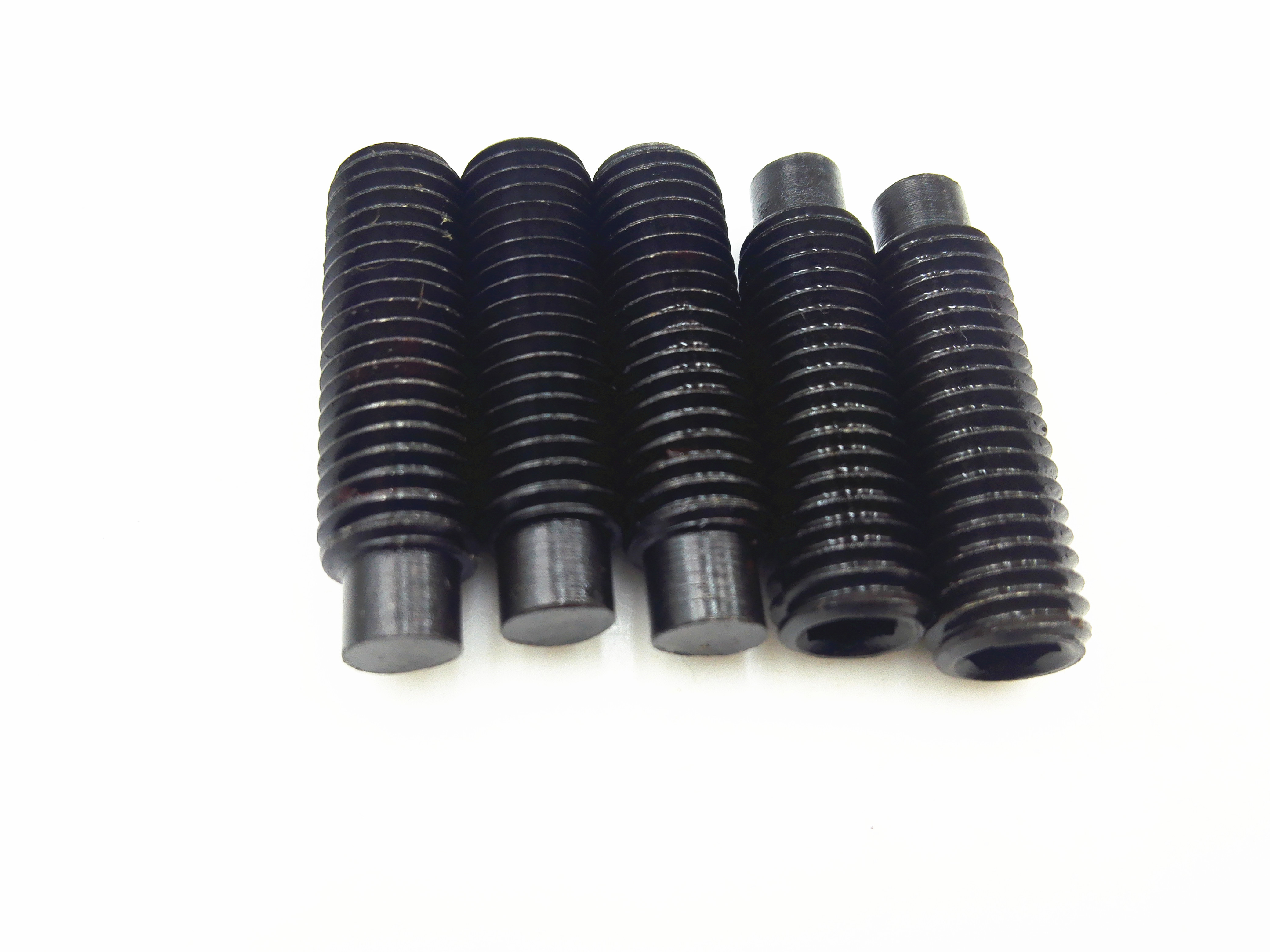

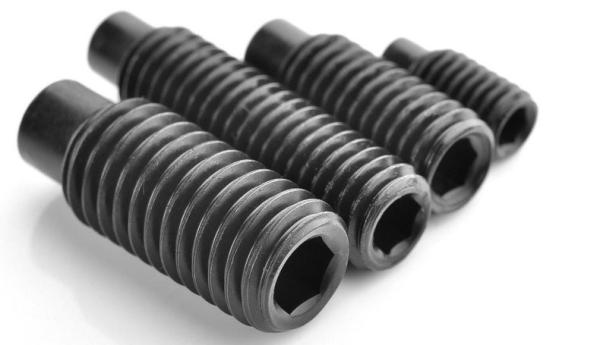

ISO4028 Class 12.9 Alloy Steel Hexagon Socket Drive Half-Dog Point Headless Screws Images
