Headless Alloy Steel Metal Set Screws Slotted Drive Flat Point DIN24766

Product Categories
Suzhou Runtai Precision Hardware Co,.Ltd.
Contact Now

Headless Alloy Steel Metal Set Screws Slotted Drive Flat Point DIN24766

  • 1
  • 2
  • 3

Brand Name : Runtai

Model Number : Set Screws

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A

Supply Ability : 5 Ton/ days

Delivery Time : 15-20 working days

Packaging Details : PP bag+Carton box+ Wooden Pallet

Size : M1-M30 for choose

Material : Steel, Stainless Steel, Brass, Aluminum Alloy

Grade : 4.8 8.8 10.9 12.9 for choose

Surface treatment : zinc plated, nickel plated, black phosphates for choose

Standard : DIN ISO JIS ANSI

Products Name : Alloy Steel Slotted Drive Flat Point Headless Screws

Contact Now

Alloy Steel Slotted Drive Flat Point Headless Screws DIN24766 Set Screws

Products Description

.With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 12.9 steel screws. Their black-oxide finish provides mild corrosion resistance in dry environments.They have a flat point and slotted drive contact surface for a secure hold. Length listed is the overall length.

Products Specification

Material Alloy Steel
Thread Size M3
Thread Pitch 0.5 mm
Length 10 mm
Drive Size 1.5 mm
Hardness Rockwell C45
Specifications Met ISO4766
Thread Type Metric
Thread Spacing Coarse
Thread Fit Class 5g6g
Thread Direction Right Hand
Drive Style Slotted
Tip Type Flat
Head Type Headless
System of Measurement Metric
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.

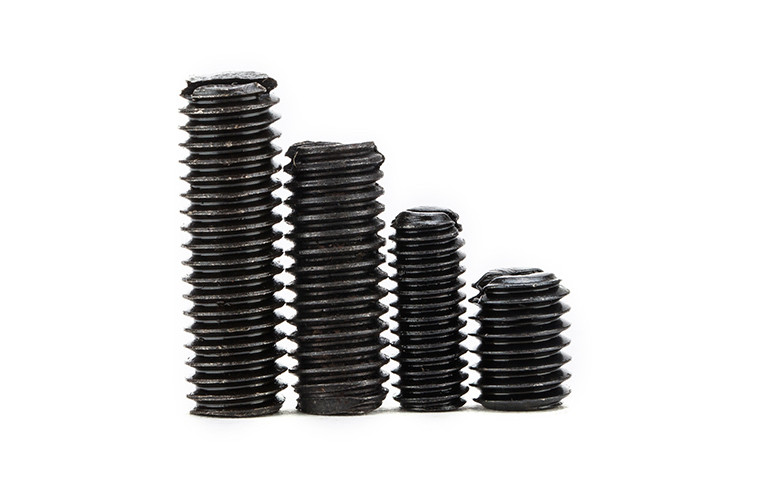

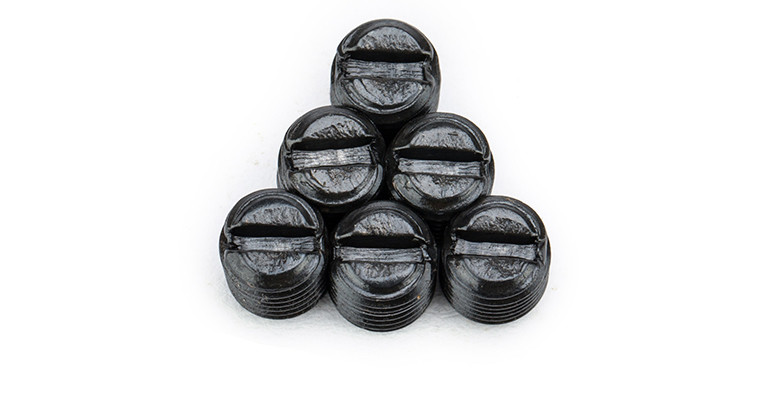

More Products Pictures

Headless Alloy Steel Metal Set Screws Slotted Drive Flat Point DIN24766Headless Alloy Steel Metal Set Screws Slotted Drive Flat Point DIN24766Headless Alloy Steel Metal Set Screws Slotted Drive Flat Point DIN24766
