18-8 Stainless Steel Phillips Drive Oval Head Self-Tapping Screws Round Head Pointed Screws

Name: 188 Stainless Steel Phillips Drive Oval Head SelfTapping Screws Round Head Pointed Screws
Brand: Runtai
Price: 1 USD

Quality 18-8 Stainless Steel Phillips Drive Oval Head Self-Tapping Screws Round Head Pointed Screws wholesale

Brand Name : Runtai

Model Number : RT-001

Certification : ISO9001/TS16949

Place of Origin : China

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000ton/month

Delivery Time : 15-20 working

Packaging Details : Poly bag+Cartoon Box+ Wooden Pallet

Products Name : 18-8 Stainless Steel Phillips Drive Oval Head Self-Tapping Screws

Grade : 4.8 8.8 10.9 12.9 14.9

Standard : DIN,ANSI,JIS,ASTM,GB

Size : M1-M60 For Choose

Material For Choose : Carbon Steel, Stainless Steel,Brass, Aluminum Alloy

Surface Treatment : Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide

Contact Now

18-8 Stainless Steel Phillips Drive Oval Head Self-Tapping Screws Round Head Pointed Screws

Products Description

18-8 stainless steel screws have good chemical resistance may be mildly magnetic. A decorative rounded top provides a finished appearance.These screws are beveled under the head for use in countersunk holes. They penetrate 0.025" and thinner sheet metal. Length is measured from the edge of the head.

Products Specification

Material	18-8 Stainless Steel
Screw Size	No. 10
Screw Size Decimal Equivalent	0.190"
Length	2 1/2"
Flat Head Profile	Oval
Head
Diameter	0.362"
Height	0.176"
Drive Size	No. 2
Drive Style	Phillips
Drill Bit Size	No. 21
Drill Bit Size Decimal Equivalent	0.159"
Maximum Drilling Thickness	0.025"
Approximate Threads per Inch	12
Thread Direction	Right Hand
Threading	Fully Threaded
Tapping Method	Thread Forming
Tapping Screw Type	A/AB
Head Type	Flat, Rounded
Rounded Head Profile	Low
Rounded Head Style	Oval
Oval Top Height	0.103"
Countersink Angle	82°
Tip Type	Pointed
Shank Cross Section	Round
System of Measurement	Inch
For Use In	Sheet Metal
RoHS	Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

Product Tags:

self tapping sheet metal screws

self drilling tapping screws

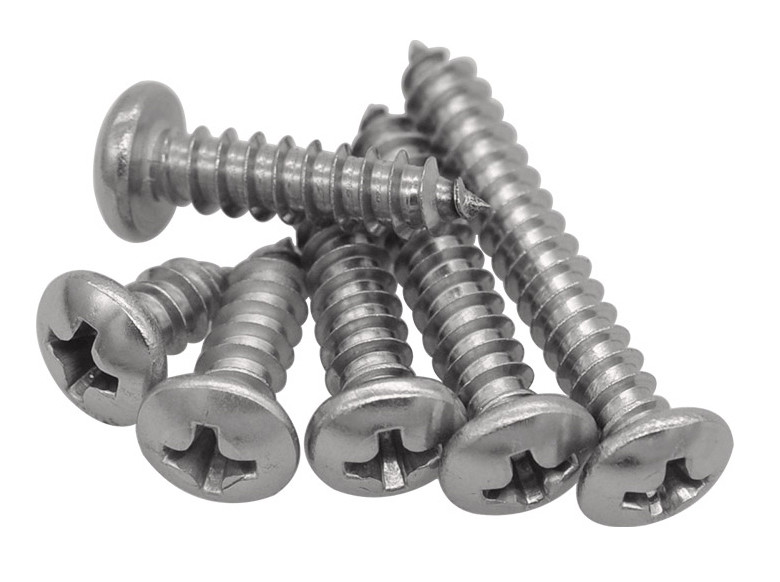

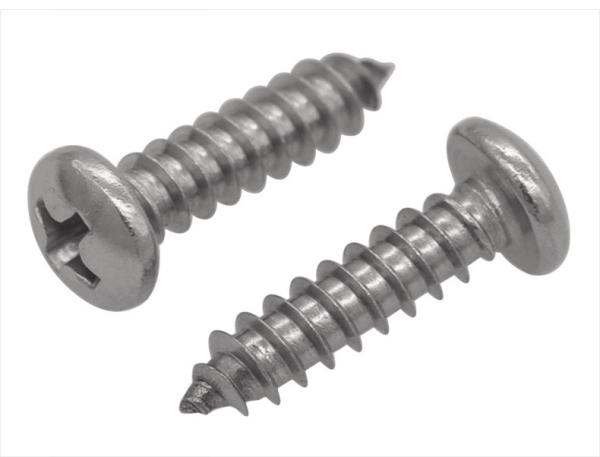

18-8 Stainless Steel Phillips Drive Oval Head Self-Tapping Screws Round Head Pointed Screws Images
